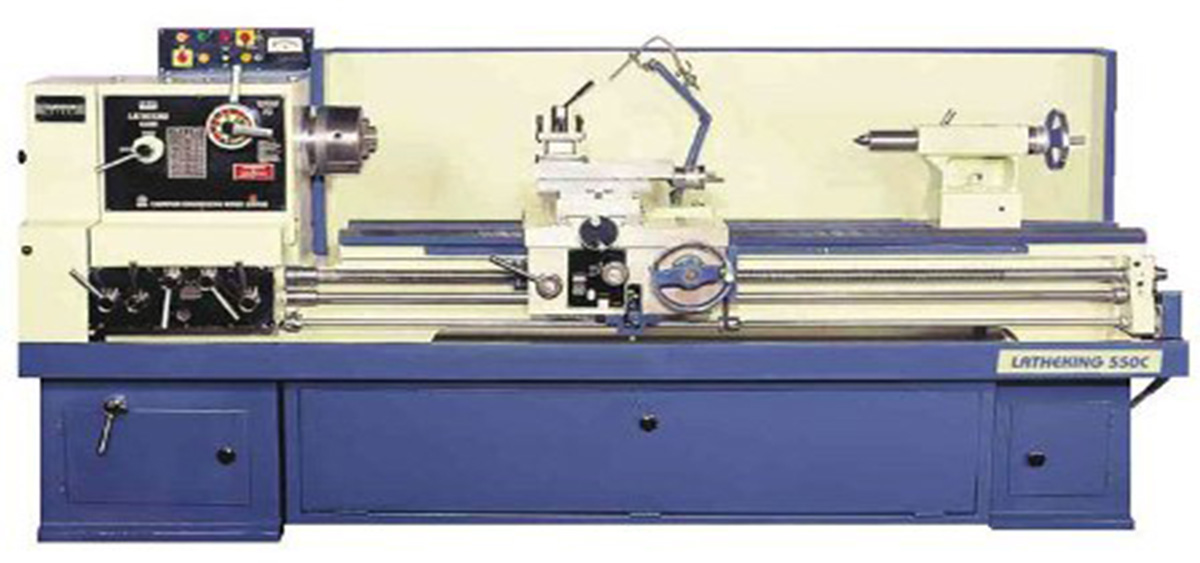

Our Product

Specifications (all measurement in mm)

Capacity	Model - 410c	Model - 450c	Model - 500c	Model - 550c	Model - 600c	Get Quote
Height of centers	205	225	250	275	300	Quote
Swing over bed	410	450	500	550	600	Quote
Swing over cross slide	205	240	280	305	360	Quote
Distance between centers	750/1000	1/1.5/2(M)	1/1.5/2(M)	1/1.5/2/2.5(M)	1/1.5/2/2.5(M)	Quote
Movement of cross slide	240	240	300	325	350	Quote
Bed
Bed type	2 V & 2 Flat	2 V & 2 F	2 V & 2 F	2 V & 2 F	2 V & 2 F	Quote
Width of bed	275	290	315	340	375	Quote
Main Spindle
Type of spindle nose	Taper Nose	Taper Nose	Taper Nose	Taper Nose	Taper Nose	Quote
Taper bore in spindle Sleeve	MT-3	MT-3	MT-4	MT-4	MT-4	Quote
Spindle bore	42	54	54/63	63/80	63/80	Quote
Tail Stock
Spindle diameter	47	60	62	62	62	Quote
Taper bore in spindle	MT-3	MT-4	MT-4	MT-4	MT-5	Quote
Spindle travel	150	150	150	165	165	Quote
Tool or Top Slide
Travel of top slide	160	170	180	180	185	Quote
Tool shank section	25x25	25x25	32x32	32x32	32x32	Quote
Speeds
No. of speeds	9	16	16	16	16	Quote
Range (RPM)	90-1200	40-1400	40-1400	40-1400	35-1200	Quote
Feeds
No. of feeds	30	30	30	30	30	Quote
Threads-Range
Metric	.575-4	.575-4	.575-4	.575-4	.575-4	Quote
Inch	4-28	4-28	4-28	4-28	4-28	Quote
Electrical
Main Motor	2/1440	3/1440	3/960	3/960	5/960	Quote
Power Supply	3 Phase	3 Phase	3 Phase	3 Phase	3 Phase	Quote
Other Data
ABC (M)	.75 M	1 M	1.5 M	2 M	2.5 M	Quote
Weight (Approx)	1200 Kg.	2000 Kg.	2300 Kg.	2800 Kg.	3000 Kg.	Quote

Salient Features

Bed: Robust & heavily ribbed V-gap Bed is made of close grain ultra rigid. Alloy casting duly Hardened & Ground Bed, accurately, Machined guideways to withstand heavy cuts. Each Bed is tested for rigidity.

Headstock: All gears are made of special alloy steel, Hardened & Profile Ground. Electromagnetic Brake unit for stopping the main spindle.

Main Spindle: Spindle made of special alloy steel with taper nose mounted on two opposed Anti Friction Taper Roller bearings.

Tool Post: Fitted with Ratchet for Precise Positioning & quick shifting.

Apron: Apron is a specially designed U-shaped inter-locking mechanism for longitudional Cross feed/Threading worm bearings & gears are lubricated through one Point Hole.

Saddle: Provided with full length cross slide, Dial indicator to cut odd pitches. Accurately graduated Compound Rest is mounted on the saddle for concical turnings can be swivled on either side.

Feed Box: Provides wide range of feeds & threads - inches & metric with lever selector.

Tail Stock: Robust design & arranged to set in for Taper Turning. Quile is of large diameter with Standard Morse Taper.

Adjustable & Graduated Rings

Safety Devices: Emergency brake for head stock & carriage, overload/No Volt protection.
